滾珠絲杠的生產范圍

The range of manufacturing for Ball Screws.

按絲杠軸公稱外徑劃分，上井滾珠絲杠的生產范圍為φ 4.0 ～φ 20mm 。以下介紹了不同精度等級的絲杠軸的參考極限長度。具體長度會因軸端形狀、材質及絲杠軸系列而異，詳情請垂詢本公司。

The range of manufacturing for SJ Ball Screws is from φ4.0 to φ20mm as Shaft nominal diameter. Maximum limit of overall lengths are shown below. Maximum limit of overall lengths will vary depending on the Shaft end configuration, materials and SJ series. Please inquire SJ for details.

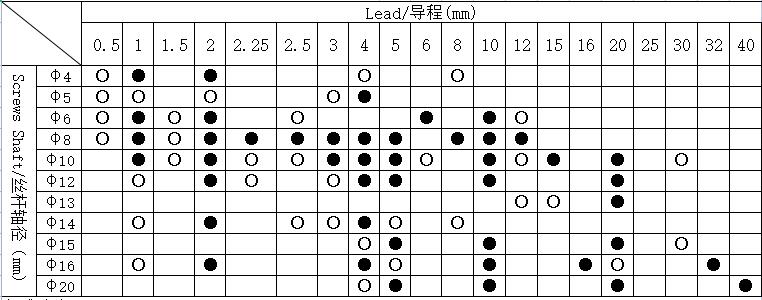

絲桿軸徑-導程速查表

Table of Shaft dia. and Lead combination.

標準庫存品/Standard Products ●

接單生產/Customized Products ○

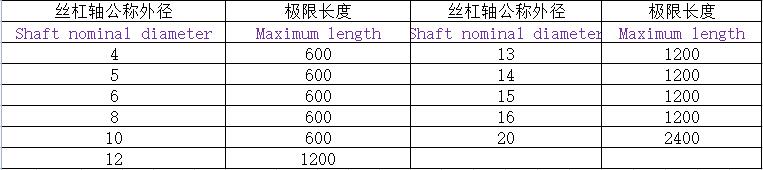

冷軋滾珠絲杠 （C5 & Ct7 & Ct10） 的生產極限長度

Maximum limit of overall lengths for Rolled Ball Screws （C5 & Ct7 & Ct10）

                                                                                                                                                                                                                                            Unit （單位）： mm

注 1 ）超出生產極限長度時，請垂詢本公司。

注 2 ）冷軋滾珠絲杠的極限長度值中包括絲杠兩端各 25mm 的不完全螺紋部分。

Note 1）If required length exceeds the number in table above, please ask SJ representative

Note 2）Maximum limit of overall length for Rolled Ball Screws includes 25mm of incomplete thread area at both end.
